VDM6A
Product SKU: VDM6A

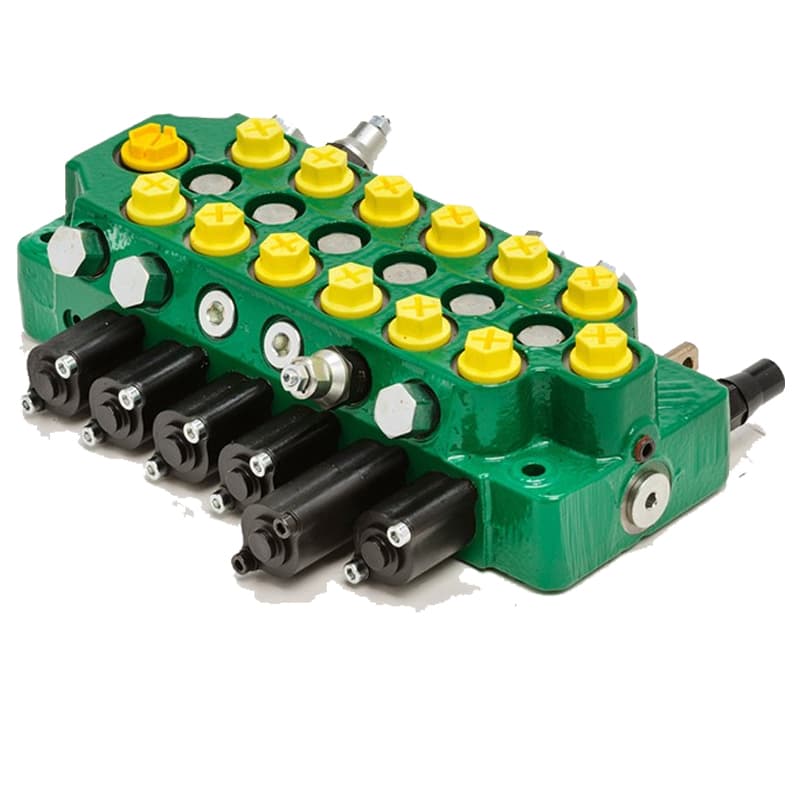

VDM6A -Salami Monoblock Valve
Features include:
- Monoblock composed of 1-7 mechanical sections.
- Interchangeability of all the spools.
- Monoblock construction with sectional concept.
- Spool construction in steel, hardened and chromium-plated.
- Parallel circuit, load check valve protection on each section.
- Auxiliary valve either on port A or B or on both.
- Single/double acting conversion port valve.
- Electric carry over.
Operating pressure: 350 - 5070
Nr of section: 1 - 7
Max flow per section: 60 - 16
circuit: P
Nominal Flow: 45 - 12
max operating pressure P: 350 - 5070
max operating pressure AB: 350 - 5100
max operating pressure T: 25 - 360
