VDM6
Product SKU: VDM6

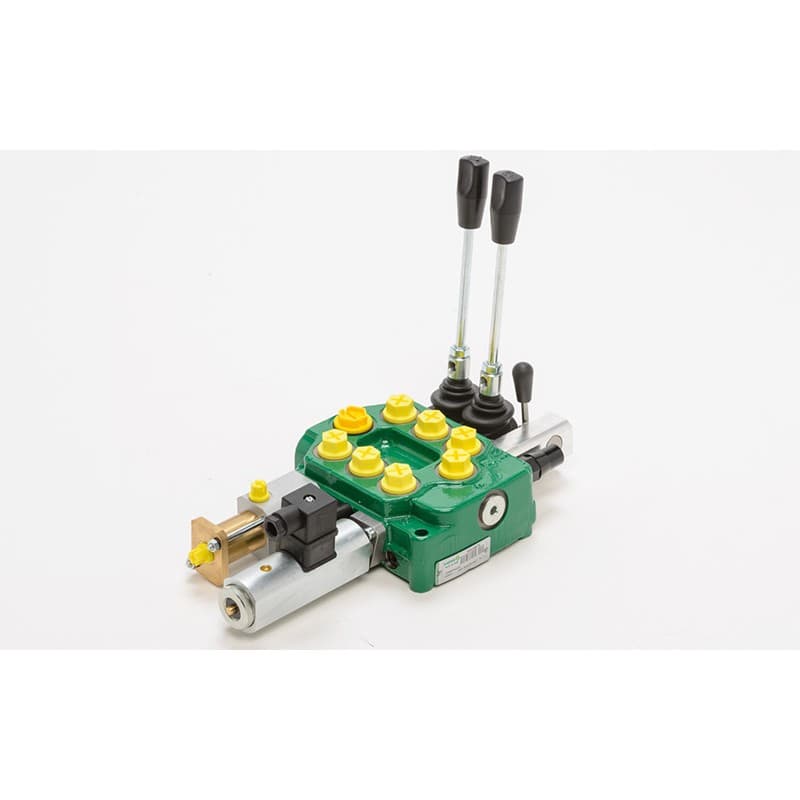

VDM6 Monoblock Valve - Salami
Features include:
- Composed of 1-7 mechanical sections.
- Interchangeability of all the spools.
- Spool construction in steel, hardened and nickel plated.
- Parallel circuit with single load check valve on pressure “P” line.
- Tandem circuit available on only the first working section of the 2, 3, 4, 5 and 6 working sections monoblocks.
- Series circuit on only the first working section of the 2, 3, 4, 5 and 6 working sections monoblocks.
- Series realized inside the spool.
- On-off electric control with manual override.
- Emergency unloading valve.
Operating pressure: 350 - 5070
Section distance: 32 - 1.26
BSP: G3/8
Nr of section: 1 - 7
UN-UNF: SAE 8
Metric: M18x1.5
Max flow per section: 60 - 16
circuit: P / S / T
Nominal Flow: 45 - 12
max operating pressure P: 350 - 5070
max operating pressure AB: 350 - 5100
max operating pressure T: 25 - 360
