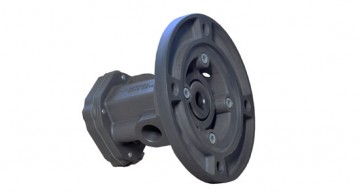

SMT8B series
Product SKU: SMT8B
SMT8B series are three screw pumps ideal for heavy duty cooling and chilling applications.
The extremely compact design enables to use this pump also in applications where there is no space for traditional screw pumps. SMT8B pumps are very often used for gear box lubrication, hydro power, jacking oil systems in the wind energy, industrial and mobile sectors
Flanges: IEC Standard
Connection: BSPP(GAS) – SAE 3000
Shaft Speed: 500-1750 rpm
Rated Flow: 15 up to 80 L/min
Outlet Pressure: up to 15 bar
Inlet pressure: 1,5 bar
