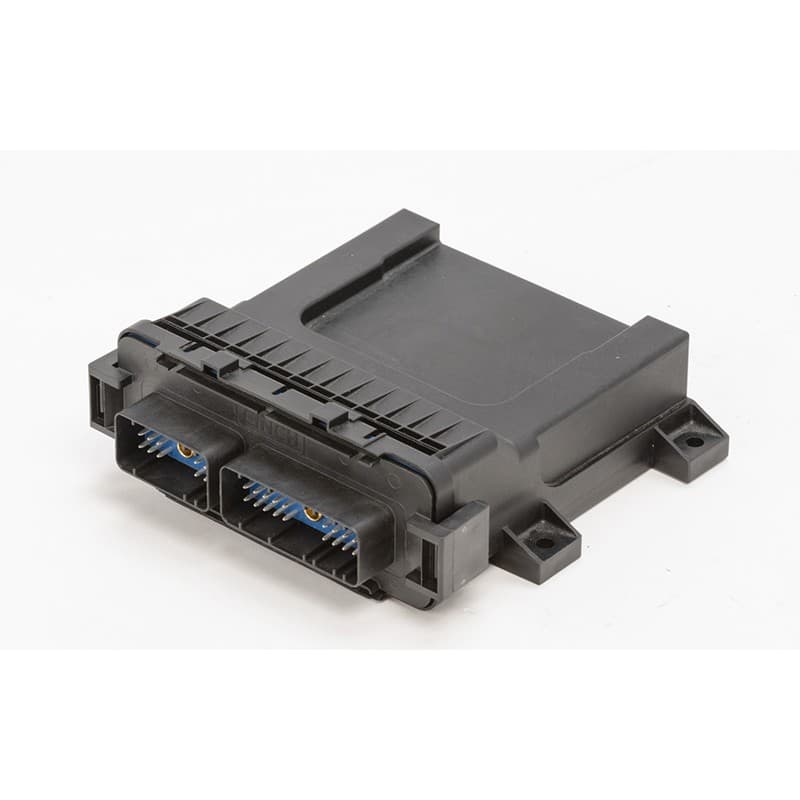

ECS

Electronic Control System

MAIN FEATURES

• Supply Voltage: 8 ÷ 36V.
• Maximum current supplied: up to 20A for each connector (40A total).
• Electromagnetic certifications: Emission Test: EN 55011 Class A, Immunity Test: EN 61000-4-2,3,6.
• Protections: reverse polarity, overvoltage, over­current and short circuits.
• Working temperature: -40° ÷ 85°C.
• Processing unit: dual 32 bit-CPU.
• Stockage temperature: -50° ÷ 125°C.
• Number of connectors: 2 (30 + 18 pins).
• Number of PWM/Digi­tal Outputs: 16 outputs programmable as propor­tional (PWM) or digital (ON/OFF):up to 5A for digital;up to 2A for PWM proportional (with 12 bit resolution);high and low side protected with current feedback.
• Number of Analog / Digital Inputs: 10 (with 12 bit resolution, configura­ble as digitals, or 4-20mA, or 0-5V, or 0-10V, or ratiometrics).Communication pro­tocol: 2 independent CAN lines (J1939, CANopen).
• Parameters Calibration / Diagnostics: Wireless, using “BT 2.1 + EDR” (2.4 GHz) trasmission between ECS (built-in antenna) and a PC with a dedicated software.
• Auxiliary voltages for the power supply of external devices: 5V, 12V, Vsupply.Sealing: IP67, IP69K.Salt Spray: 96 Hrs.
• Temperature Life: 1000 Hrs @ 85°C.Fluid Resistance: Resists to most fluids used in industrial appli­cations.
