3,5PC
Product SKU: 35PC

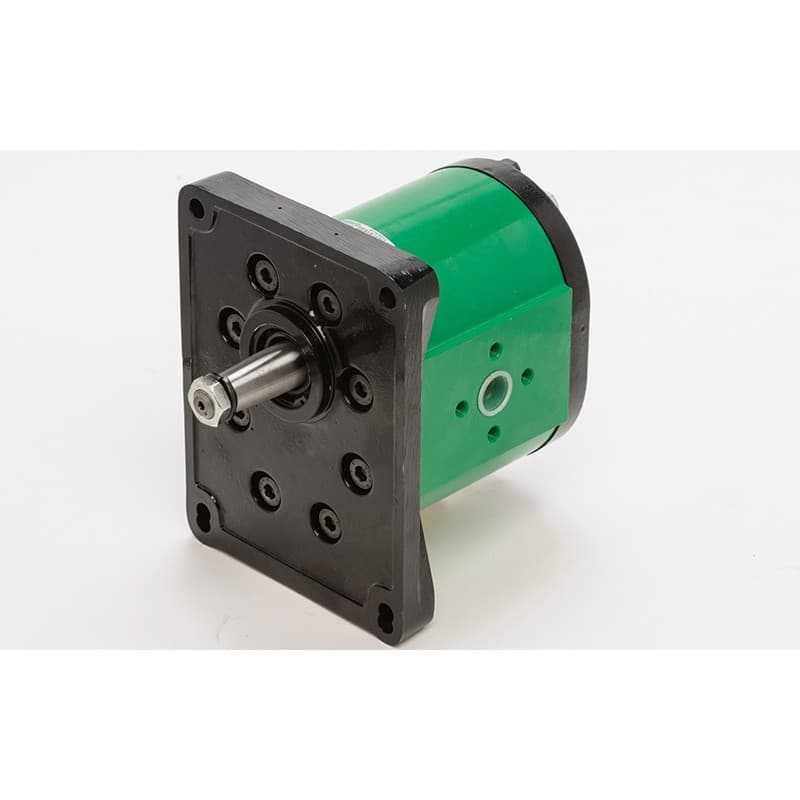

3,5PC Gear pumps made with aluminium alloy body and cast iron flanges and rear covers.
Key Features:
- Displacements from 3.34 to 6.03 cu.in/rev.
- Integral gear with 12 teeth.
- Double shaft seal.
- Available with flanges, shafts and ports for the main European and American standards.
- Available supports with bearing.
Displacements: 54.8 - 3.34
Working pressure P5: 250 - 3625
Intermittent pressure P6: 280 - 4060
Peak pressure at P6: 300 - 4300
max speed 6: 2750
