1,5DRE
Product SKU: 15DRE

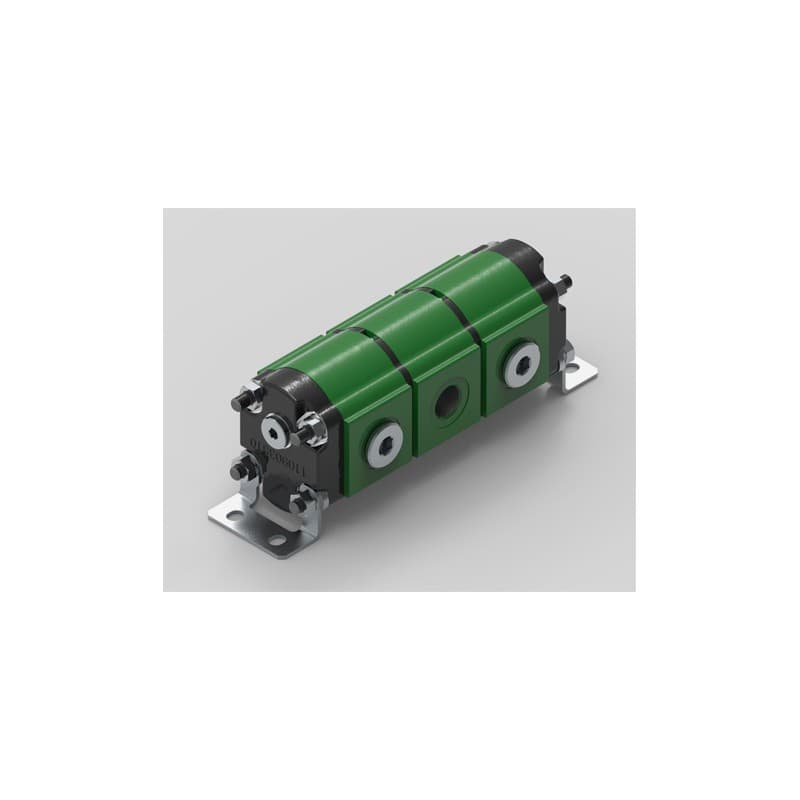

1,5DRE Gear Flow Divider - Salami
Features include:
- Gear flow dividers made with aluminium alloy body and cast iron end covers.
- High volumetric efficiency achieved by floating bushings and axial compensation.
- Integral gear with 12 teeth.
- Ports: European, German and SAE Standards.
- Common Inlet Port available also on the side-cover.
- Assembling up to 6 Stages possible.
- 2DRE-VA: cylinder synchronize function.
Max flow per section: 13.26 - 3.49
Displacements: 2.8 - 0.17
Max outlet dp: 50 - 725
Min flow per section: 3.54 - 0.93
max speed 16: 4500
min speed 9: 1200
Max outlet pressure P0: 250 - 3600
Max outlet pressure P2: 270 - 3915
