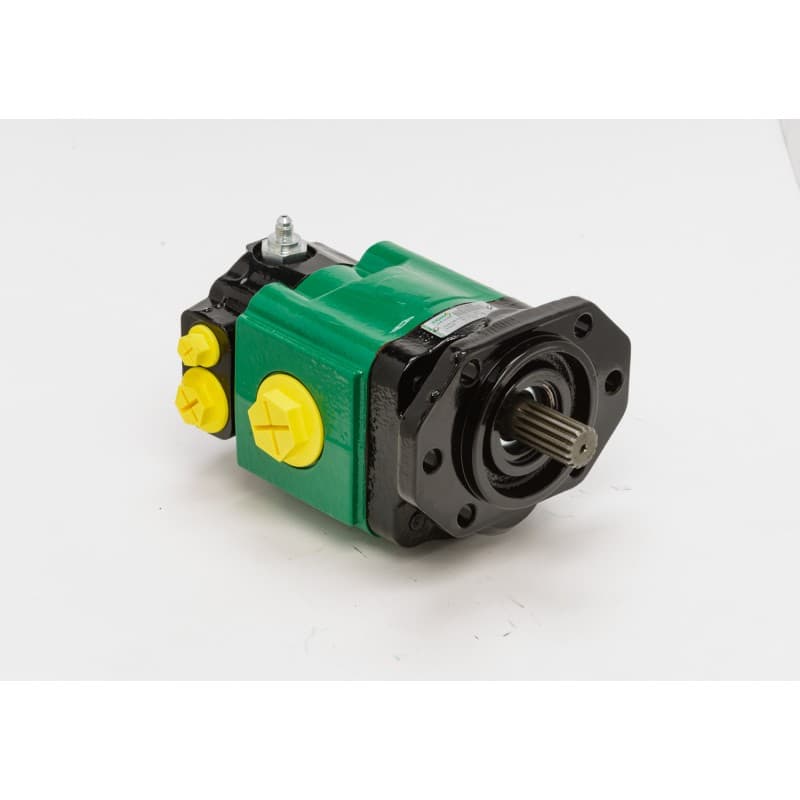

PG330
Product SKU: PG330
Gear pumps made in spheroidal cast ironThis new series of cast iron pumps has been designed for two-piece construction, to grant as much compactness as possible.Cast iron front flanges and rear bodies.Displacements from 1.43 to 4.91 cu.in/rev.High volumetric efficiency throughout the full pressure range, by narrow machining tolerance range and by floating plates, that ensure axial compensation.High pressure capability by DU bearings.Integral gear with 12 teeth.Double shaft seals.Flanges: European, SAE B, SAE C, ISO (for PTO designs).Ports: European and SAE Standards.
Displacements: 23.4 - 1.43
Working pressure P6: 260 - 3800
Weight: 12.77 - 28.15
Intermittent pressure P7: 280 - 4000
Peak pressure at P7: 300 - 4350
max speed 7: 3000
